Export Data from Snowflake to Backblaze B2

You can copy data from Snowflake to Backblaze B2 to make it available to the rich ecosystem of applications and tools that can work with S3-compatible storage. You can also migrate data from Snowflake to Backblaze B2 to take advantage of our lower storage cost, particularly for data that is infrequently accessed.

This article explains how to perform the following tasks:

• Export data from a Snowflake-native table to Backblaze B2 Cloud Storage.
• Create an external table to query the exported data from Snowflake.

For more information about using Snowflake with Backblaze B2, see Data-Driven Decisions with Snowflake and Backblaze B2.

Snowflake External Data Basics

You can manage external data by creating external tables within an external stage. An external stage is a Snowflake database object that is created in a schema. The stage object stores the URL to files in cloud storage, the settings that are used to access the cloud storage account, and convenience settings such as the options that describe the format of staged files.

Similarly, an external table is a Snowflake database object that stores certain file-level metadata, including filenames, version identifiers, and related properties. External tables can access data that is stored in any format that the Snowflake COPY INTO <table> command supports. At the time of publication, these formats are CSV, JSON, Apache Avro, Apache ORC, Apache Parquet, and XML.

Enable Backblaze B2

Create a Bucket

You can use an existing bucket, or you can create a new bucket.

If you use an existing bucket, click Buckets under B2 Cloud Storage, and note the endpoint of the bucket you will use for the Snowflake integration, for example, s3.us-west-004.backblazeb2.com.

Create an Application Key

You can use an existing key, or you can create an application key that is restricted to the bucket that you just created.

Create an External Stage

Before you begin: Sign up for Snowflake if you do not already have an account. At the time of publication, Snowflake offers a 30-day free trial, including $400 worth of free usage, which is more than enough to work through the following steps and understand how the integration works. For more information about working with Amazon S3-compatible storage, click here.

1. To enable access to the endpoint from your account, submit a support case to Snowflake.
   1. Provide your Snowflake account name and cloud region deployment.
   2. Provide your bucket's endpoint. You must also specify that the endpoint is provided by Backblaze, and that it has been verified using Snowflake's s3compat API test suite.
2. After you have confirmation that Snowflake enabled your bucket’s endpoint in your Snowflake account, use the Snowflake console to create an external stage using the following example and details:
   1. Enter a valid name; this guide uses the stage name b2_stage.
   2. Substitute your bucket name in the URL parameter.
   3. Substitute your application key and application key ID in the CREDENTIALS parameter.
   4. Enter the region as the second element of your bucket’s endpoint, for example, us-west-004.

      CREATE STAGE b2_stage
        URL = 's3compat://your-bucket-name/'
        ENDPOINT = 's3.your-region.backblazeb2.com'
        REGION = 'your-region'
        CREDENTIALS = (
          AWS_KEY_ID = 'your-application-key-id'
          AWS_SECRET_KEY = 'your-application-key'
        );

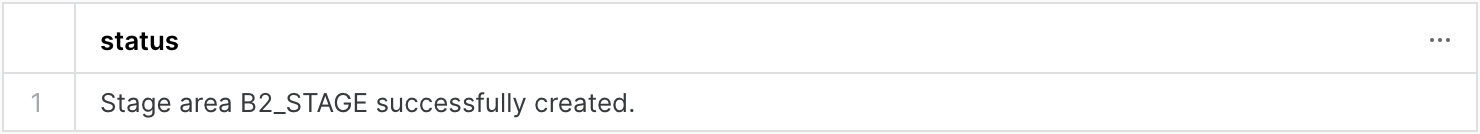

      A response similar to the following example is returned:


Copy Data to the External Stage

Before you begin: Choose a format that you will use for external data. The open-source Apache Parquet file format is used for this article. Parquet is widely supported, its column-oriented architecture is well-suited to analytical data, and its compression and encoding schemes enhance performance while reducing storage consumption.

1. Backblaze recommends that you create a named file format. You can reference this file format when you work with external files. The following example uses the Parquet file format with Snappy compression:

   CREATE FILE FORMAT parquet_snappy
     TYPE = PARQUET
     COMPRESSION = SNAPPY;

   A response similar to the following example is returned:

2. Copy data from a table in Snowflake to the external stage. The following example uses one of Snowflake’s sample tables: the customer table in the tpch_df1 schema.

   COPY INTO @b2_stage/tpch_sf1/customer
     FROM snowflake_sample_data.tpch_sf1.customer
     FILE_FORMAT = parquet_snappy
     HEADER = true;

   A response that shows how many rows and bytes were copied is returned:
3. To view the files that were written, run the following command:

   LIST @b2_stage;

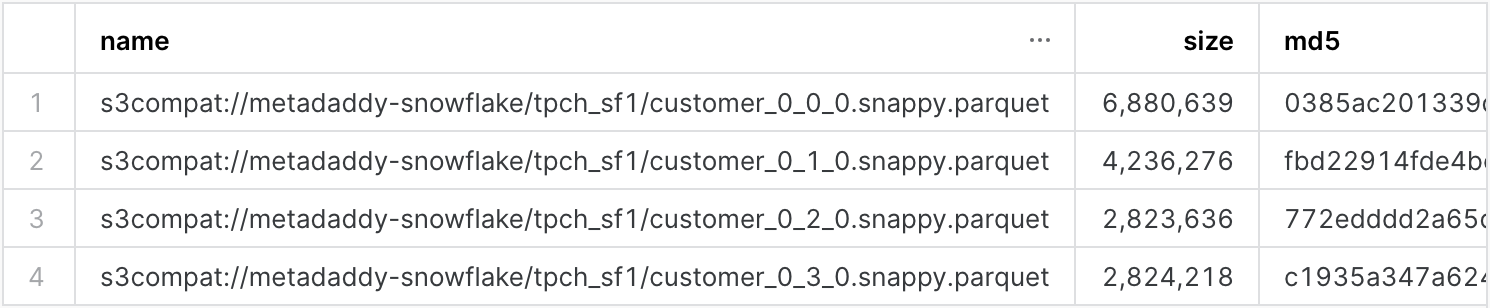

   A response similar to the following example is returned:

4. To inspect the data, run the following command directly on the files:

   SELECT *
     FROM @b2_stage/tpch_sf1/customer
       (FILE_FORMAT => 'parquet_snappy')
     LIMIT 10;

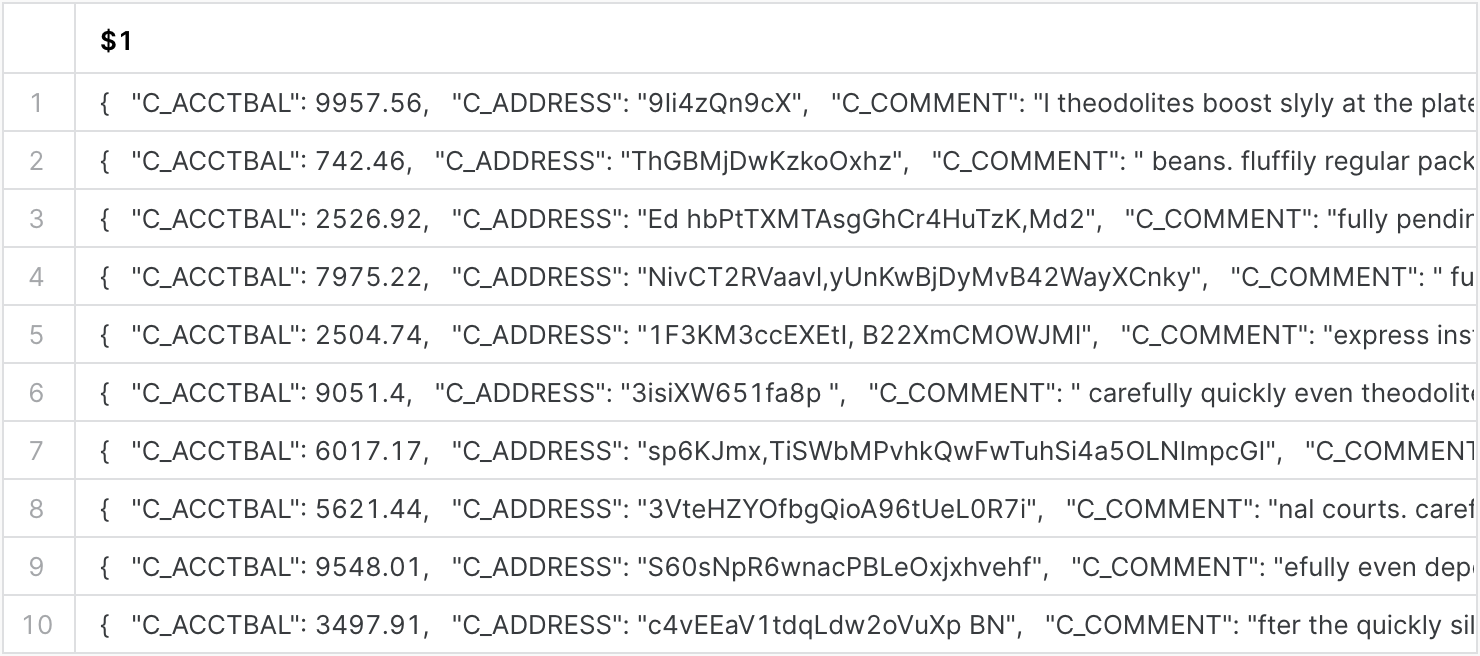

   Because Snowflake is directly reading the files, rather than querying a table with a definition, each row is shown as an OBJECT, a set of key-value pairs:


The data is now available for consumption by any application or tool that can read S3-compatible cloud object storage.

Create an External Table

It is possible to run basic queries directly on the files in the external stage. However, if you want to query the data in the external stage from Snowflake and you are migrating data from Snowflake to Backblaze B2, you should create an external table to allow you to query the exported data just as you do to Snowflake-native tables.

If you create a regular Snowflake table from scratch, you typically list the columns and their types like the following example. For files in an external stage, Snowflake makes it easier by providing the INFER_SCHEMA table function.

CREATE TABLE customer(
	c_phone VARCHAR(15),
	c_acctbal NUMBER(12,2),
	c_address VARCHAR(40),
	c_nationkey NUMBER(38,0),
	c_custkey NUMBER(38,0),
	c_name VARCHAR(25),
	c_mktsegment VARCHAR(10),
	c_comment VARCHAR(117)
);

1. For files in an external stage, use the table function INFER_SCHEMA, which automatically generates a schema from the external files. To see the output, run INFER_SCHEMA against the customer files:

   SELECT *
     FROM TABLE(
       INFER_SCHEMA(
         LOCATION=>'@b2_stage/tpch_sf1/customer',
         FILE_FORMAT=>'parquet_snappy'
       )
     );

   A response similar to the following example is returned:

2. Since INFER_SCHEMA returns a result set containing the columns and their metadata, convert it into an array of objects so that you can use it in the statement CREATE EXTERNAL TABLE ... USING TEMPLATE. Run the following command to create an external table based on the schema inferred from the external files:

   CREATE EXTERNAL TABLE external_customer
     USING TEMPLATE (
       SELECT ARRAY_AGG(OBJECT_CONSTRUCT(*))
         FROM TABLE(
           INFER_SCHEMA(
             LOCATION=>'@b2_stage/tpch_sf1/customer',
             FILE_FORMAT=>'parquet_snappy'
           )
         )
       )
       LOCATION = @b2_stage/tpch_sf1
       FILE_FORMAT = parquet_snappy
       AUTO_REFRESH = false;

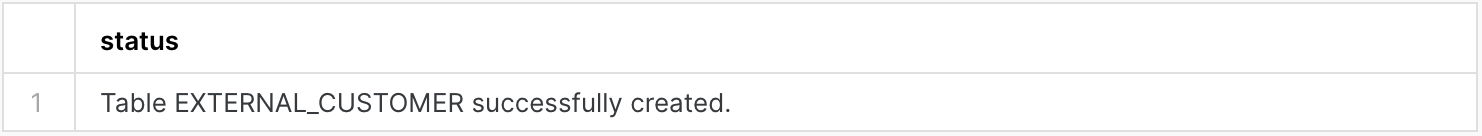

   A response similar to the following example is returned:

3. Run the following command to inspect the columns in your external table:

   DESCRIBE TABLE external_customer;

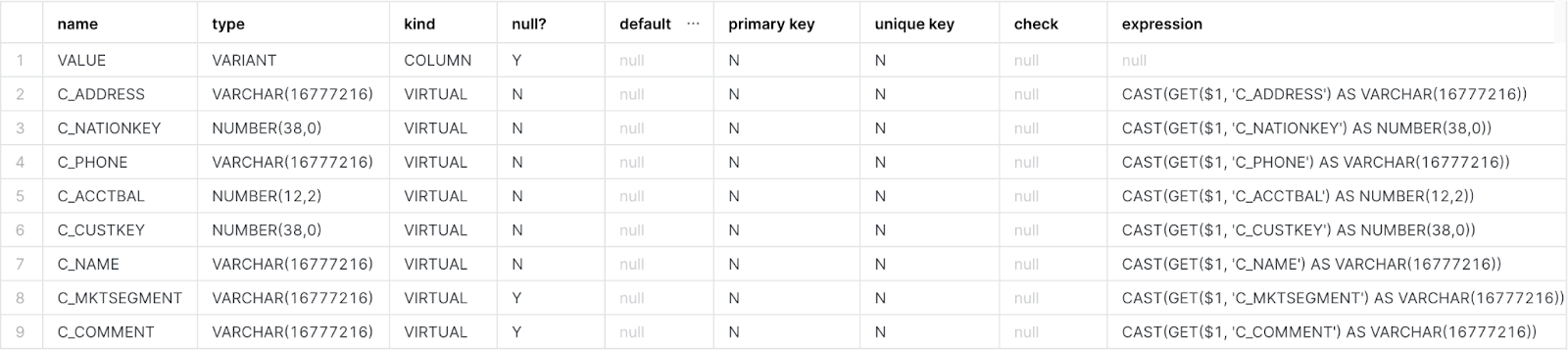

   A response similar to the following example is returned:


Snowflake widened all of the VARCHAR columns to 16,777,216 characters (16 MB). This is the default and also the maximum length for a VARCHAR field in Snowflake. There is no storage or performance penalty in doing this; a column consumes storage for only the amount of actual data stored and there is no performance difference between using the full-length VARCHAR declaration VARCHAR(16777216) and a smaller length.

Also, there is only one ‘real’ column in the table - the value column, with VARIANT type; all of the other columns are virtual columns, defined as expressions in terms of the value column.

Query Your External Table

1. Run the following command to query the external table in exactly the same way as a regular Snowflake table:

   SELECT c_name, c_mktsegment, c_acctbal
     FROM external_customer
     LIMIT 10;

   A response similar to the following example is returned:

2. To write queries that join internal and external tables, for example, to find the top 10 customers by aggregate order value by joining your external_customer table with the sample table orders, run the following command:

   SELECT c.c_name, SUM(o.o_totalprice) total_order_value, COUNT(*) order_count
     FROM external_customer c
     JOIN snowflake_sample_data.tpch_sf1.orders o
     ON c.c_custkey = o.o_custkey
     GROUP BY c.c_name
     ORDER BY total_order_value DESC
     LIMIT 10;

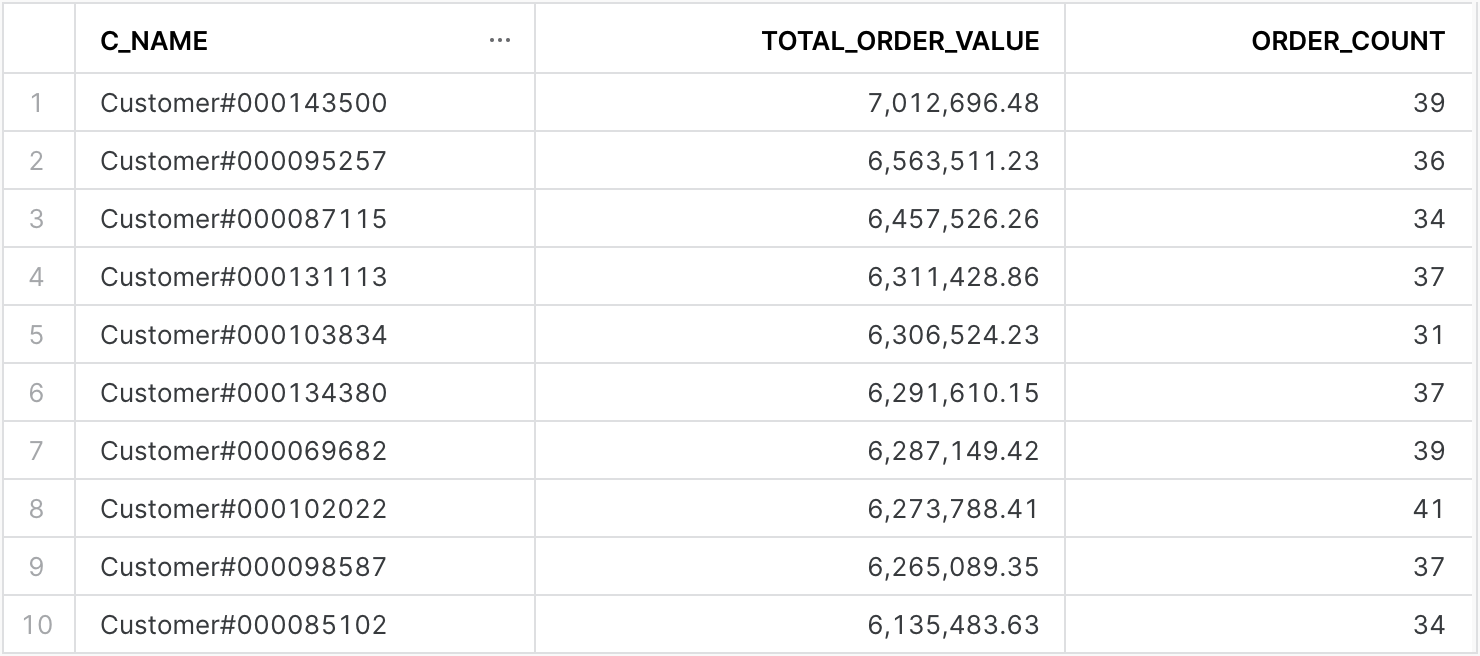

   A response similar to the following example is returned:


If you intend to migrate data from Snowflake to Backblaze B2, as opposed to creating a copy of the data, you can DROP the Snowflake-internal table after you verify that the data was successfully exported to Backblaze B2.
